Late Model Stack Packages

Out of stock
Most items are build to order
Please allow up to 13 weeks to manufacture if out of stock. You can call us to check stock status.
$939.00
Select Option

Part Number

  • SKU CR-UC-PPR003B
  • Made in the USA – Hand-built in PWR’s state-of-the-art Indianapolis facility using premium aluminum, with full control over quality at every step.
  • Proven Cooling Performance – Advanced PWR tube and fin technology engineered for consistent, repeatable heat rejection.
  • Lightweight & Efficient – Designed to maximize cooling performance without unnecessary material or excess weight.
  • Motorsport-Inspired Engineering – Developed from decades of professional racing experience and real-world validation.
  • World-Class Precision TIG-Welded – Handcrafted for durability, reliability, and precise fitment down to the smallest detail.
  • Proudly American Made – Built right here in the USA, not imported or rebranded, ensuring true manufacturing oversight and accountability.
  • Built, Not Just Assembled – Engineered and manufactured in-house from core to final weld, not pieced together from off-the-shelf components.
Description Fitment Shipping Policy

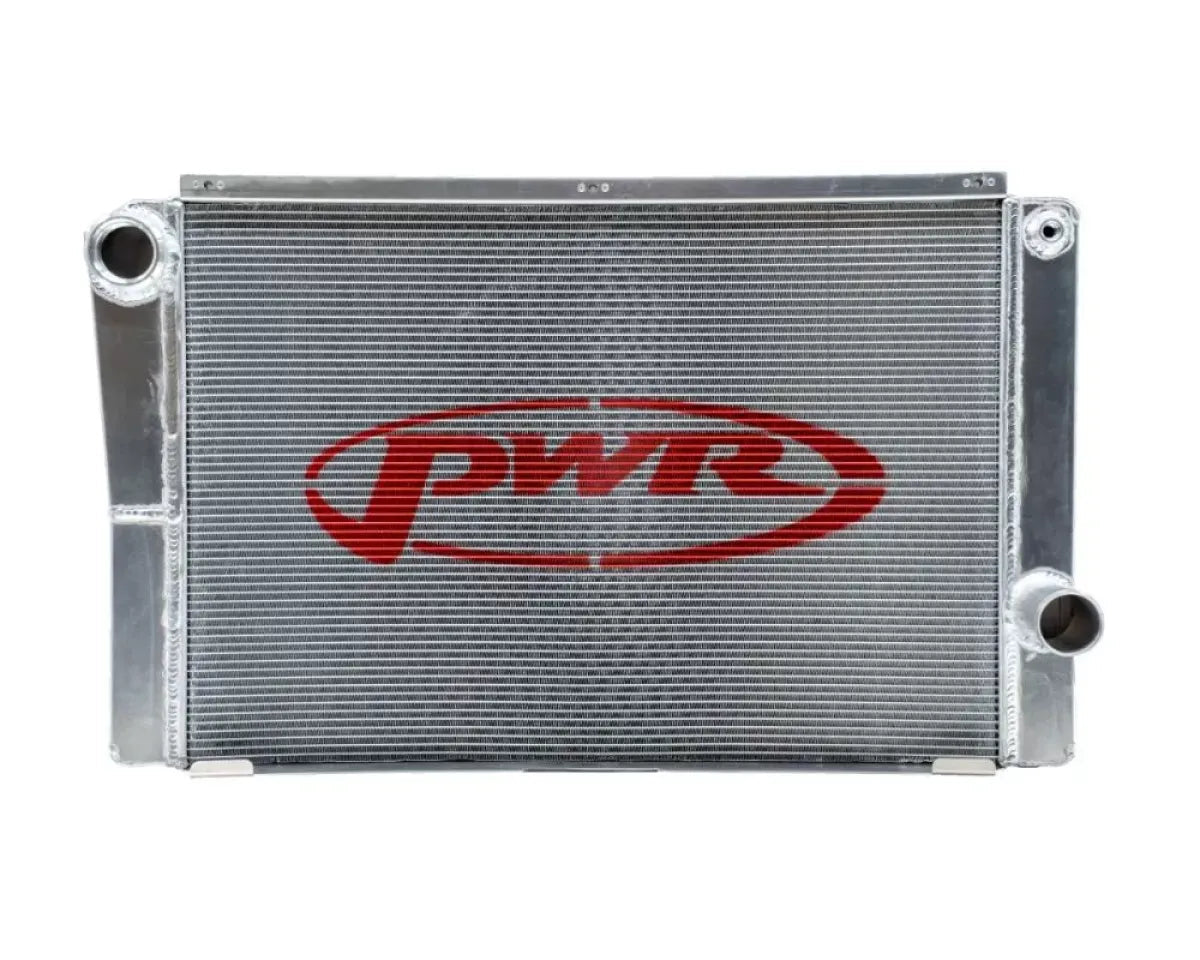

Late Model Stacked Radiator & Oil Cooler Packages

Ford & Chevy Style Configurations

The PWR Late Model Stacked Package is our latest cooling solution engineered specifically for pavement Late Model racing and other high-demand applications. Designed using the same proven approach found in our NASCAR cooling programs, this system delivers maximum thermal efficiency, durability, and consistency under extreme race conditions.

This stacked package integrates a high-efficiency radiator with a 19mm oil cooler core mounted directly behind it, reducing oil temperatures while simultaneously improving overall coolant temperature stability. By pulling heat out of the oil system, thermal load across the engine is reduced—resulting in more consistent performance during long green-flag runs.

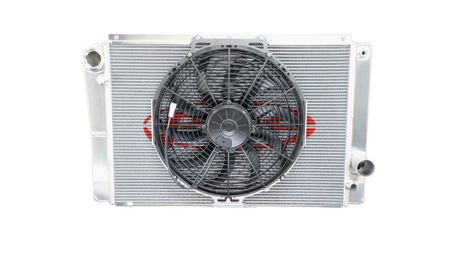

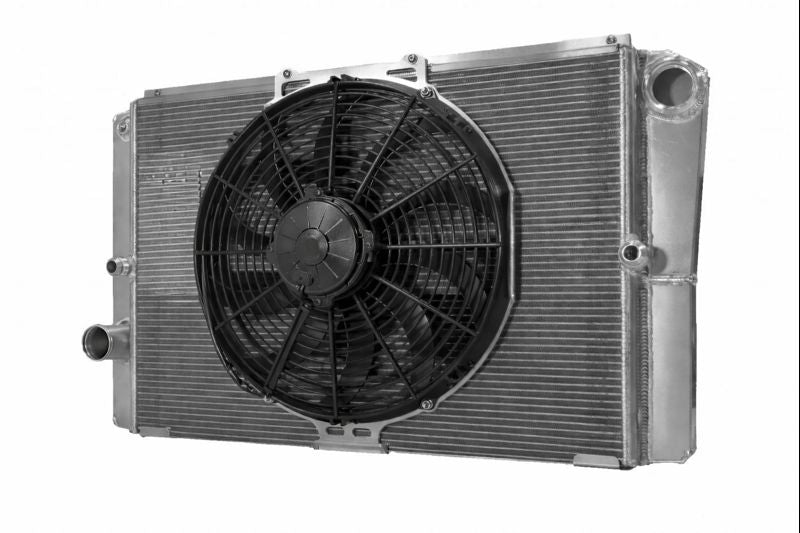

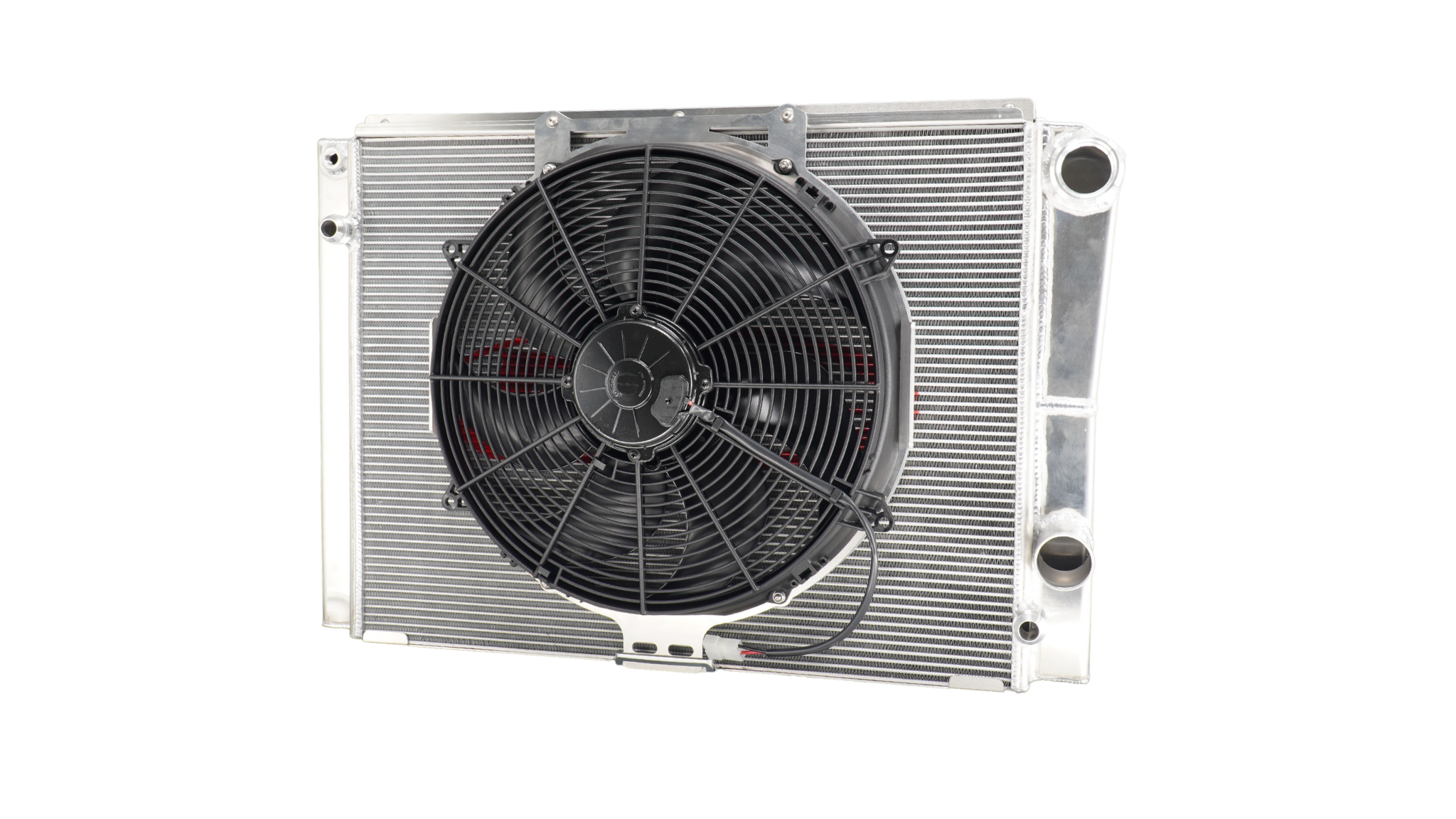

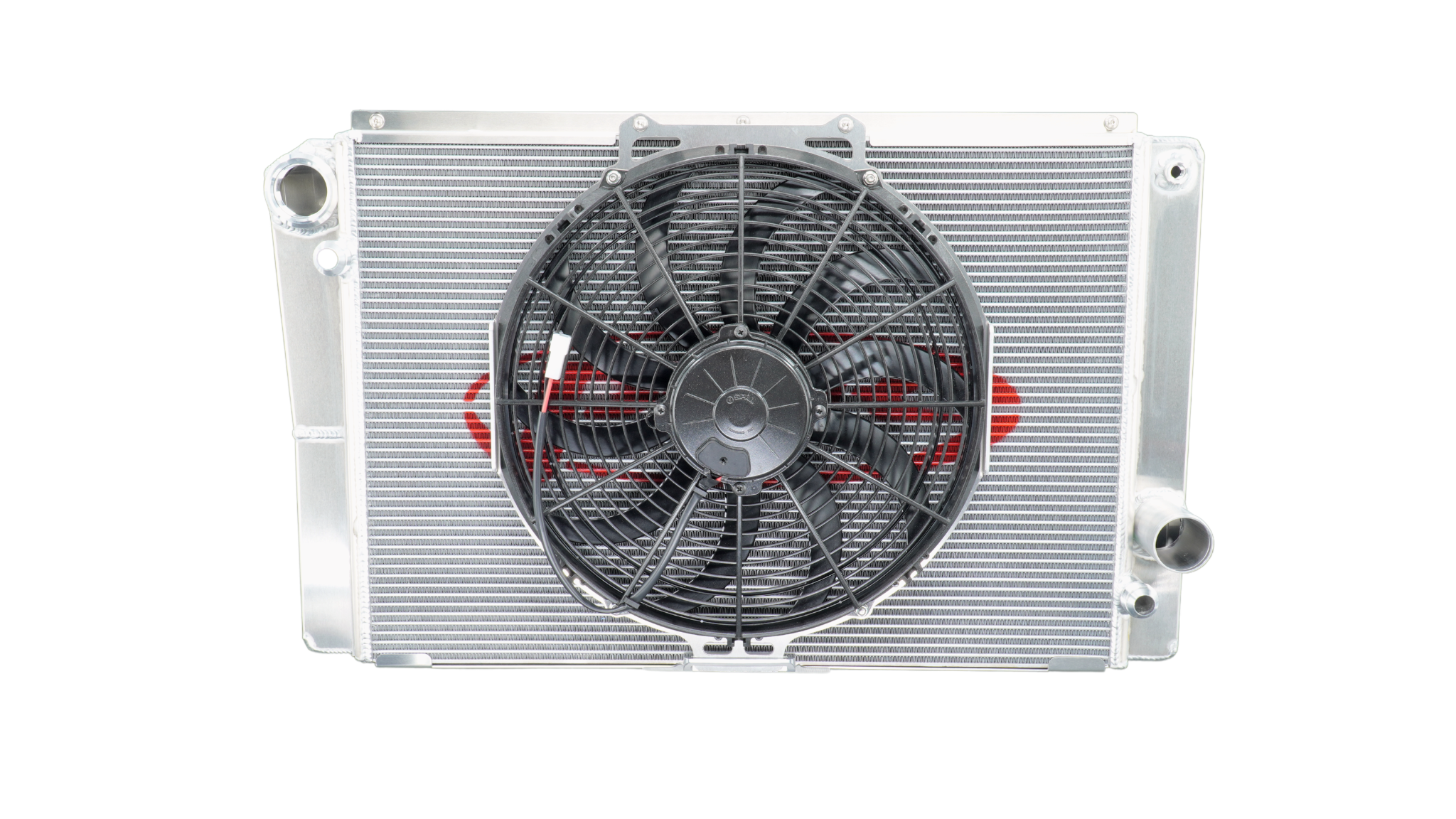

The Late Model Stacked Package is available in both Ford-style and Chevy-style configurations, allowing proper fitment across a wide range of chassis and engine combinations. Two height options are also offered to accommodate packaging needs. The taller configuration is equipped with a 16” SPAL high-performance fan, while the shorter version utilizes a 14” SPAL fan, both selected to provide exceptional airflow and cooling efficiency.

For extreme operating conditions and increased boiling points, this package is fully compatible with the PWR Pressurized Water Kit, making it ideal for the most demanding racing environments.

Key Features

  • Designed for pavement Late Model racing applications

  • Available in Ford and Chevy style configurations

  • NASCAR-inspired stacked radiator and oil cooler design

  • Integrated 19mm oil cooler core to reduce oil and coolant temperatures

  • Closed cooling system design

  • Handmade and engineered for high-performance racing

  • Compatible with PWR Pressurized Water Kit

Specifications

  • Dry Weight: 23 lb

  • Fan Options:

    • 16" SPAL High-Performance Fan (tall version)

    • 14" SPAL High-Performance Fan (short version)

  • Fan Airflow: 1,918 CFM

  • Oil Cooler Fittings: -12 AN male inlet/outlet

  • Radiator Inlet: -20 AN universal port

  • Radiator Outlet: 1-3/4" standard outlet

  • Additional Port: 1/4" female NPT

  • System Type: Closed system

Notes

Upper radiator fittings are not included.
If required, please add fittings to your cart separately. Compatible fittings can be found in Cooling Accessories.

For fitment guidance or additional information, please contact a PWR sales associate.

Upgrade with confidence and experience the unfair advantage in cooling technology.
